* Powerful, deep bass, precise, transparent, spatial and very dynamic reproduction of music,
  exact timing with live-character

* The use of a professional class A output stage determines a widely extended frequency
  response, a very good channel separation and an excellent harmonic spectrum

* Complex low-noise voltage stabilisation

* Layout optimized to shortest signal paths

* Relais with gold plated silver contacts

* ALPS high grade potentiometer

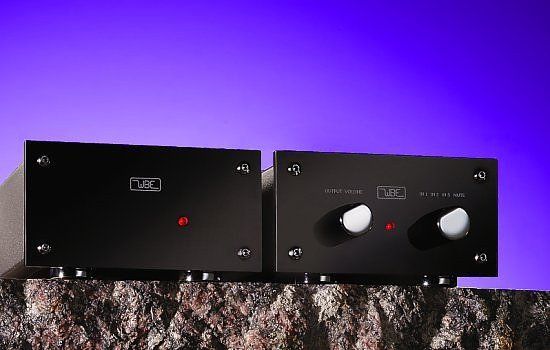

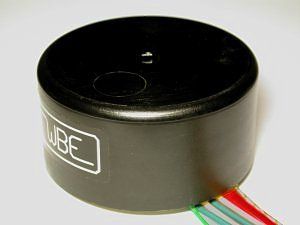

* Preamp and external 50VA power supply integrated in heavy, massive, solid high-end-

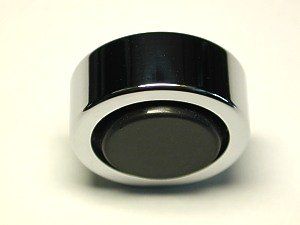

  casings with high glossy black acryl fronts and resonance absorbing polished chrome feet

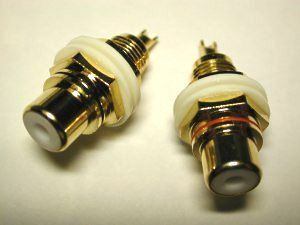

*  All input jacks and output jacks are gold plated

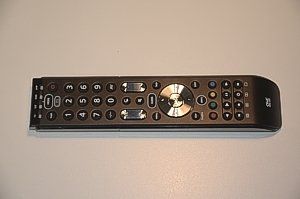

* Remote control for volume including a freely programmable,

  learnable infrared transmitter as an option avaliable (LAZYBONES)

* Every device comes along with "its own" original measuring record of the frequency response,
  further measuring records are available on request

Specifications:


Inputs/outputs: 3 line level inputs (cinch), 2 line level outputs (cinch: "AC Out" and "DC Out")

Maximal gain: 3,9 times / +11,8 dB

Gain error: < 0,7 dB from 0 to -40 dB

Input resistance at 1 kHz:  nominal 100 kOhms, inputs DC-coupled

Outputs: "DC Out": switchable output resistance 115 / 475 Ohms, DC-coupled;
               "AC Out": switchable output resistance 115 / 475 Ohms, coupled with 2,2 µF

Maximal output voltage (1 kHz): 7,5 Veff into 10 kOhms

Max. output current of the output stage (1 kHz): +/- 45 mA

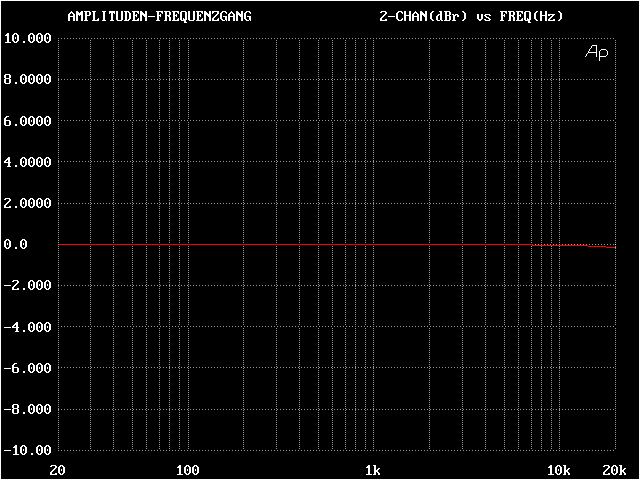

Diagram: Frequency response: DC - 130 kHz -3 dB, Poti in 45 degrees position

                (one channel shown in diagram)

Risetime/falltime: 2,6 µsec (square wave 20 kHz, measured from 10 % to 90 %, Poti in 45 degrees position)

Max. DC output offset: +/- 1,2 mV

Crosstalk: 90 dB (2 Veff input, Poti in 45 degrees position, opposite input with 40 Ohms loaded,

                 GND connector grounded)

Signal to noise ratio: -103 dB (A-weighted, ref. to 500 mV, Poti at left stop, GND connector grounded)

Total harmonic distortion (THD+N): 0,0007 % at 1,6 Veff into 10 kOhms

                                                         (GND connector grounded, measuring bandwidth 22 Hz - 22 kHz,

                                                         input 4 Veff, 1 kHz)

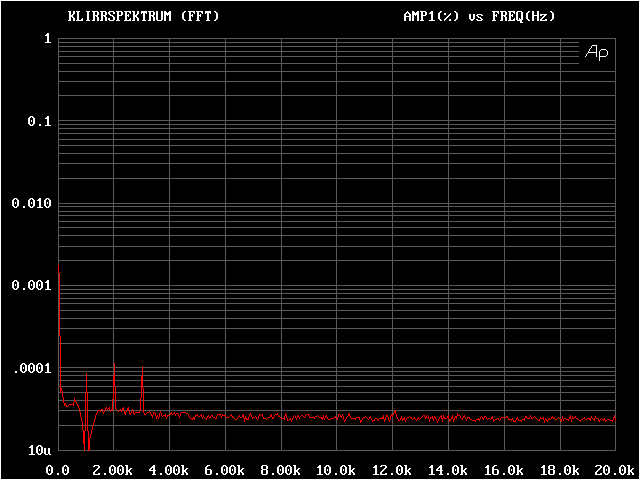

Diagram: Harmonic spectrum at 1 Veff output (1 kHz)

Dimensions: W 133mm * H 70mm * D 260mm (preamp)
                     W 133mm * H 70mm * D 240mm (external power supply)

Weight: 4,7 kg (preamp inclusive external power supply)
