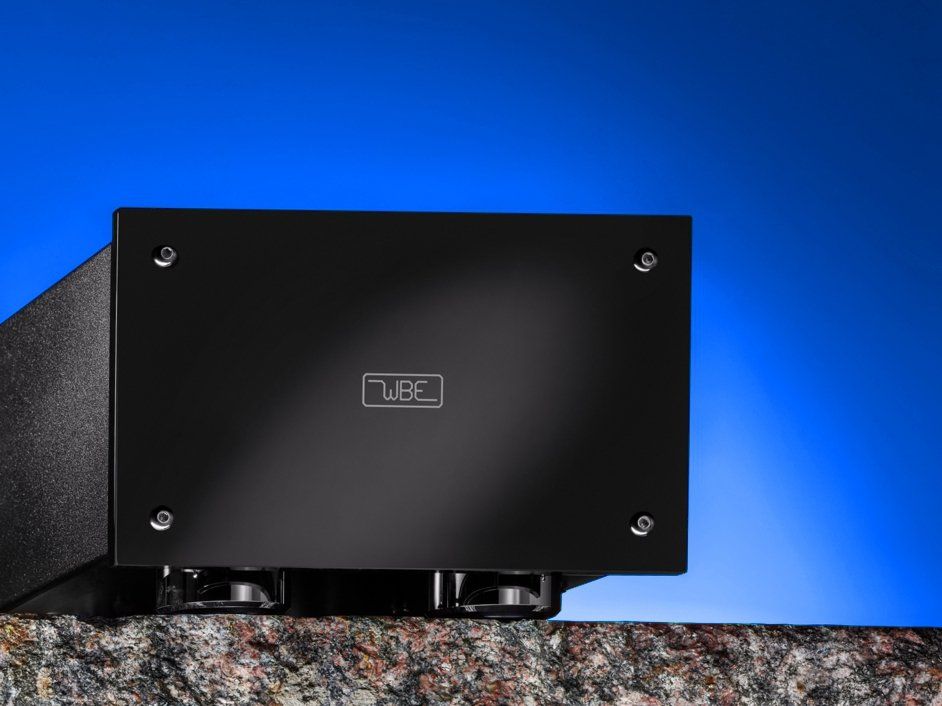

High-End DC-Blocker "DC-Eliminator No.230 MK4"

* High-End DC-blocker to be inserted ahead of all your components

* Enhanced details, musicality and spatiality

* 4 fixed HF parallel filters for suppression of the most mains-interferences

* 1 switchable HF parallel filter for intensified suppression of very high frequencies

* Protection against overcurrent

* Protection against overvoltage

* Precision DC measuring filter for measuring the input DC-voltage

* Noble, high glossy black acrylic front, massive, solid high-end-casing with resonance
absorbing polished chrome feet

Adaptability:

Special technical features:

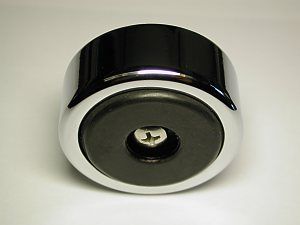

Massive resonance absorbing chrome feet

Specifications:

Valid range of input-voltage: 230 V AC +/- 10 % / 50Hz

Max. continuous current: 10 Amp (limited with fuse: 12,5 Amp time-lag fuse)

Rating of internal protection-diodes: 400 Amp for 5 Milliseconds

Voltage drop at 0,5 Amp load current: approx. 92 mV AC
at 1 Amp load current: approx. 185 mV AC

at 2 Amp load current: approx. 370 mV AC
at 3 Amp load current: approx. 555 mV AC

Max. DC-rejection at 0,5 Amp load current: +/- 1,42 V DC
at 1 Amp load current: +/- 1,34 V DC

at 2 Amp load current: +/- 1,18 V DC
at 3 Amp load current: +/- 1,02 V DC

Compensation time for DC-rejection of 63 % at 0,5 Amp load current: 9 seconds
at 1 Amp load current: 4,5 seconds
at 2 Amp load current: 2,2 seconds
at 3 Amp load current: 1,5 seconds

Optimal continuous current: 0,3 Amp to 4,0 Amp

Internal resistance of DC-Blocker with fixed parallel filter quartett: SW1=OFF at 100 KHz / 1 MHz / 10 MHz
5,9 / 3,3 / 3,2 Ohm

Internal resistance of DC-Blocker with activated (switchable) parallel filter: SW1=ON at 100 KHz / 1 MHz / 10 MHz
5,2 / 2,0 / 0,42 Ohm
(this filter is optimized for intensified suppressing RF at very high frequencies)

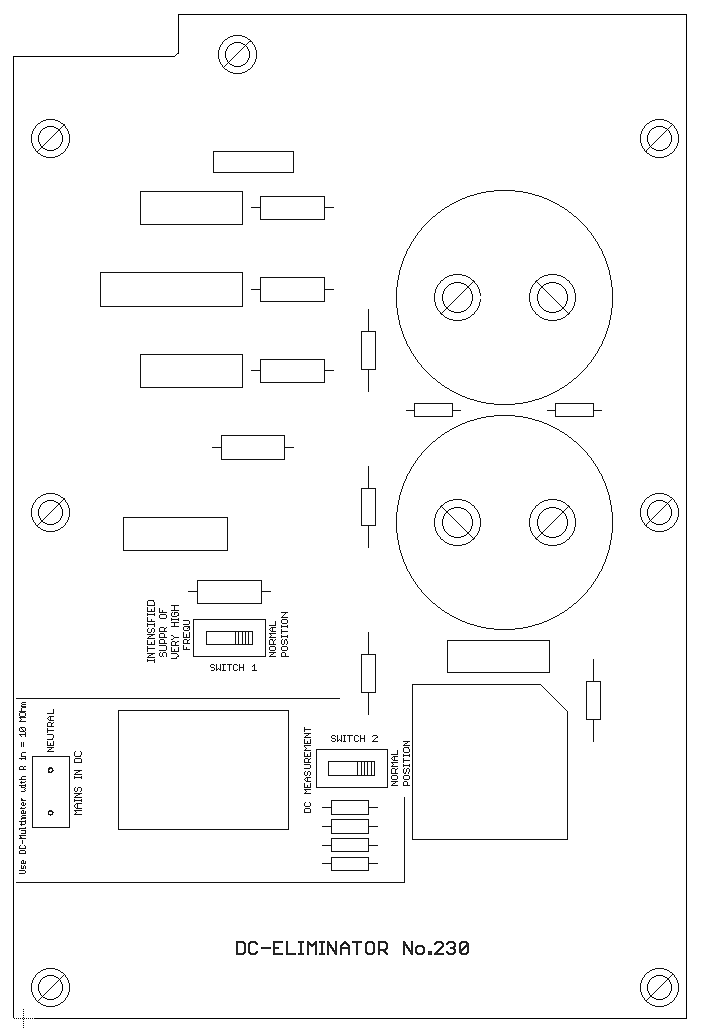

Switching-function: SW2=ON = activates the internal precision DC-measuring-filter (<0,68 Hz)
