* in our special tube-hybrid technology we combine the precision,
power and speed of transistors with the smoothness, clarity and
richness in tonal colour of tubes

* Unrivalled musicality, precise, transparent, spatial and very dynamic reproduction of music,
  powerful, deep bass, exact timing with live-character

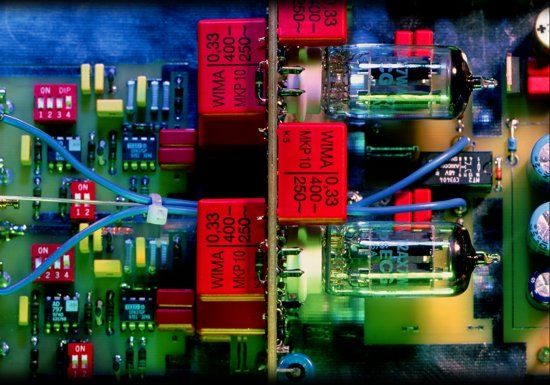

* Channel separated double triodes ECC83, a passive RIAA equalisation and a professional,
  class A output stage determine excellent channel separation and an extremely sweet tempered
  triode distortion performance

* Contact optimized ceramic tube sockets

* Completely new developed circuitry without negative overall feedback and
  with only a few components in signal path

* Complex low-noise voltage stabilisation for solid-state section

* Stabilized anode voltage, filament voltage and voltage for softstart management,
  additional mute function

* Adjustment of capacity to MM cartridges and adjustment of resistance
  to MC cartridges with high-quality code switches

* Extremely high RIAA precision of +/- 0,10 dB

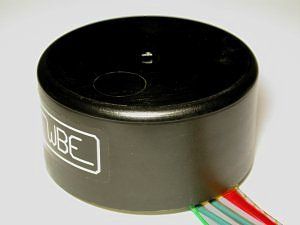

* RIAA preamp and 2 external 50VA power supplies (tube- and solid state sections separated)
   integrated in heavy, massive, solid high-end-casings with high glossy black acryl fronts

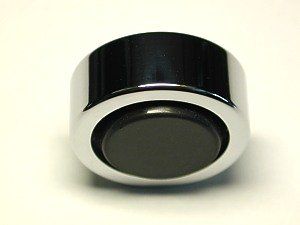

 and resonance absorbing polished chrome feet

* All input jacks and output jacks are gold plated

* Every device comes along with "its own" original measuring record of the frequency response,
  further measuring records are available on request

Specifications:


Gain: MM operation: 94 times / +39,5 dB at 1 kHz (level difference left/right at 1 kHz: <0,1 dB)
          MC operation: 1130 times / +60,3 dB at 1 kHz (level difference left/right at 1 kHz: <0,1 dB)
          (other values of gain are customisable)

Input impedance: MM input: 47,5 kOhms // 30/80/130/180/250/300/350/400 pF (code switches)
                             MC input: 55/66/76/88/100/120/150/200/330/420/475/680 Ohms  (code switches)

Output resistance at 1 kHz: Option: 50 or 475 Ohms

RIAA curve: time constants: 75 µs / 318 µs / 3180 µs

Subsonic filter MC: 5 Hz (-3 dB, 12 dB/Oct.)


Subsonic filter MM: 3 Hz (-3 dB, 6 dB/Oct.)

Max. deviation from ideal frequency response: +/- 0,15 dB (measured from 50 Hz to 20 kHz,

                                                                           referenced to 1 kHz)


Diagram: Typical frequency response

Max. DC offset: +/- 0,5 mV

Crosstalk: MC operation: 74 dB, MM operation: 76 dB (input 2,2 mVeff / 17 mVeff,

                 opposite input with 40 Ohms loaded, GND connector grounded)

Signal to noise ratio: MC operation: -73,5 dB, MM operation: -83 dB (A-weighted, ref. to 500 mV,
                                  input with 40 Ohms loaded, GND connector grounded)

Total harmonic distortion (THD+N): MM operation: 0,007 %, MC operation: 0,04 % (1,6 Veff into 10 kOhms,

                                                         at 1 kHz, input floating, GND connector grounded,

                                                         measuring bandwidth 22 Hz - 22 kHz)
                                                         Please do take into consideration: The values of THD+N depends on
                                                         the used tubes


Diagram: Harmonic spectrum with MM-operation at 1 Veff output (1 kHz)

Dimensions: W 284mm * H 70mm * D 260mm (phono preamp)
                     W 133mm * H 70mm * D 240mm (external power supplies)

Weight: 8,6 kg (preamp inclusive 2 external power supplies)
