Reference Line Preamp "Veracity No.48 MK4"




Powerful, deep bass, precise, transparent, spatial and very dynamic reproduction of music,
  exact timing with live-character


* The use of a professional class A output stage determines a widely extended frequency
  response, a very good channel separation and an excellent harmonic spectrum


* Complex low-noise voltage stabilisation

* Layout optimized to shortest signal paths

* Relais with gold plated silver contacts

* ALPS high grade potentiometer

* Switchable output resistance

*

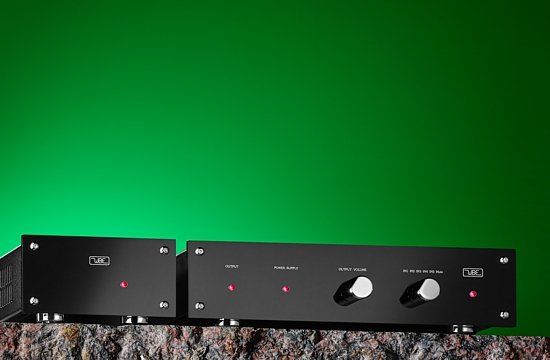

 Preamp and external 50VA power supply integrated in heavy, massive, solid high-end-
  casings with high glossy black acryl fronts and resonance absorbing polished chrome feet


* All input jacks and output jacks are gold plated

* Remote control for volume including a freely programmable,

  learnable infrared transmitter as an option avaliable (LAZYBONES)

* Every device comes along with "its own" original measuring record of the frequency response,
  further measuring records are available on request


Special technical features:

ALPS high grade stereo-potentiometer for volume

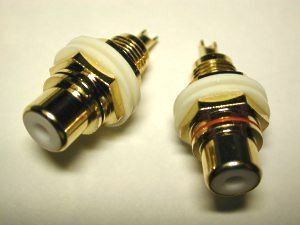

With device back plate screwed massive gold plated
cinch jacks for durable mechanical stability

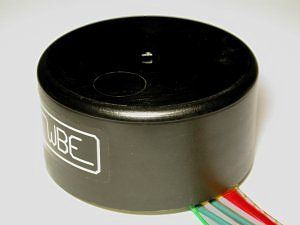

Big torroid transformer (integrated in the power supply)

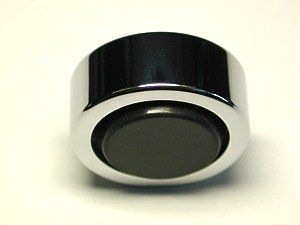

Heavy, massive resonance absorbing chrome feet

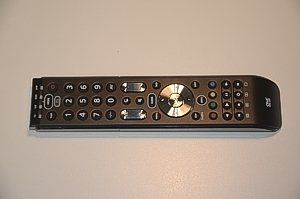

Option: IR remote control

for Purist No.48 / Veracity No.48 / Continuance No.84

with complete internal electronic circuitry and with free programmable
and learnable IR-transmitter

The IR-transmitter is delivered without batteries

Specifications:


Inputs/outputs:
5 line level inputs (cinch), 2 line level outputs (cinch: "AC Out" and "DC Out")


Maximal gain: 3,9 times / +11,8 dB



Gain error: < 0,7 dB from 0 to -40 dB



Input resistance at 1 kHz: nominal 100 kOhms, inputs DC-coupled


Outputs: "DC Out": switchable output resistance 115 / 475 Ohms, DC-coupled;
               "AC Out": switchable output resistance 115 / 475 Ohms, coupled with 2,2 µF


Maximal output voltage (1 kHz): 7,5 Veff into 10 kOhms

Max. output current of the output stage (1 kHz):
+/- 45 mA


Diagram: Frequency response: DC - 130 kHz -3 dB, Poti in 45 degrees position

                (one channel shown in diagram)

Risetime/falltime: 2,6 µsec (square wave 20 kHz, measured from 10 % to 90 %, Poti in 45 degrees position)


Max. DC output offset: +/- 1,2 mV


Crosstalk: 90 dB (2 Veff input, Poti in 45 degrees position, opposite input with 40 Ohms loaded,

                 GND connector grounded)



Signal to noise ratio: -103 dB (A-weighted, ref. to 500 mV, Poti at left stop, GND connector grounded)


Total harmonic distortion (THD+N): 0,0007 % at 1,6 Veff into 10 kOhms
                                                         (GND connector grounded, measuring bandwidth 22 Hz - 22 kHz,

                                                         input 4 Veff, 1 kHz)


Diagram: Harmonic spectrum at 1 Veff output (1 kHz)

Dimensions: W 284mm * H 70mm * D 260mm (preamp)
                     W 133mm * H 70mm * D 240mm (external power supply)


Weight: 6,1 kg (preamp inclusive external power supply)
